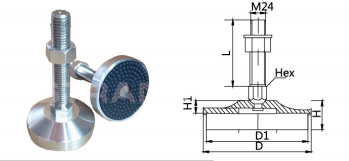

Stainless Steel Conveyor Parts Fixed Feet

Short Description:

Suitable for mechanical equipment support.
The nut is screwed into the bottom of the thread, and the surface is protected by the net sleeve, which is safe and convenient to use.
Material of Base, Spindle and Nut: Stainless Steel;
Rubber Pad available in order to prevent shock and slip.

Send email to us

Product Detail

Product Tags

Dia.M	Length L	Base Dia. D	Max Bearing
M8 M10 M12	30 50 100 150	50	800
M14 M16			900
M12 M14	50 100 150	60	1000
M16 M18			1200
M20			1400
M16 M18	50 100 150	80	1500
M20 M24			1800
			1800-2400
M16 M18	50 100 150 200	100	2000
M20			2200
M24 M30			2800
M16 M18	50 100 150 200	120	1500
M20			2000
M24			2500
M30			3000
Material of Base, Spindle and Nut: Carbon Steel Nickle Plated. Rubber Pad available in order to prevent shock and slip.
