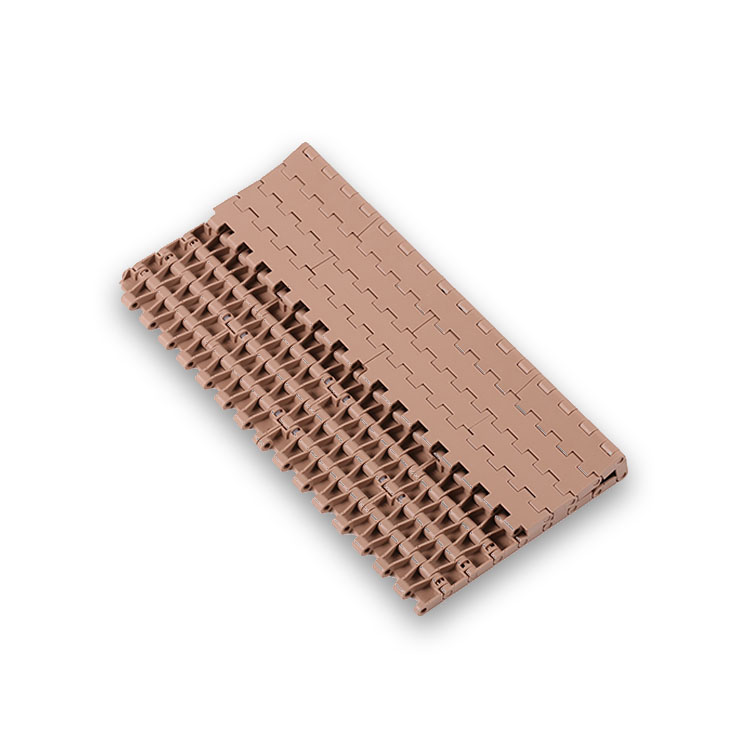

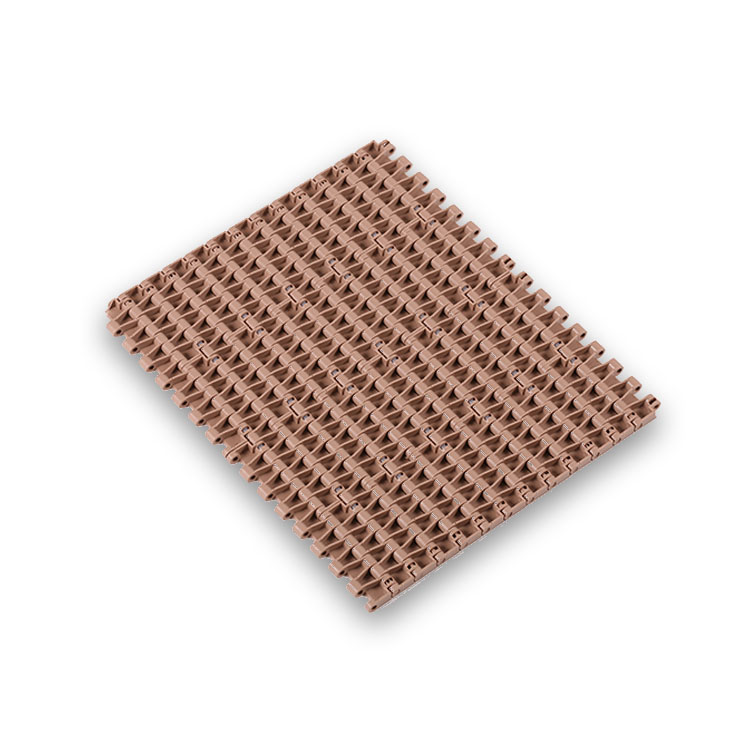

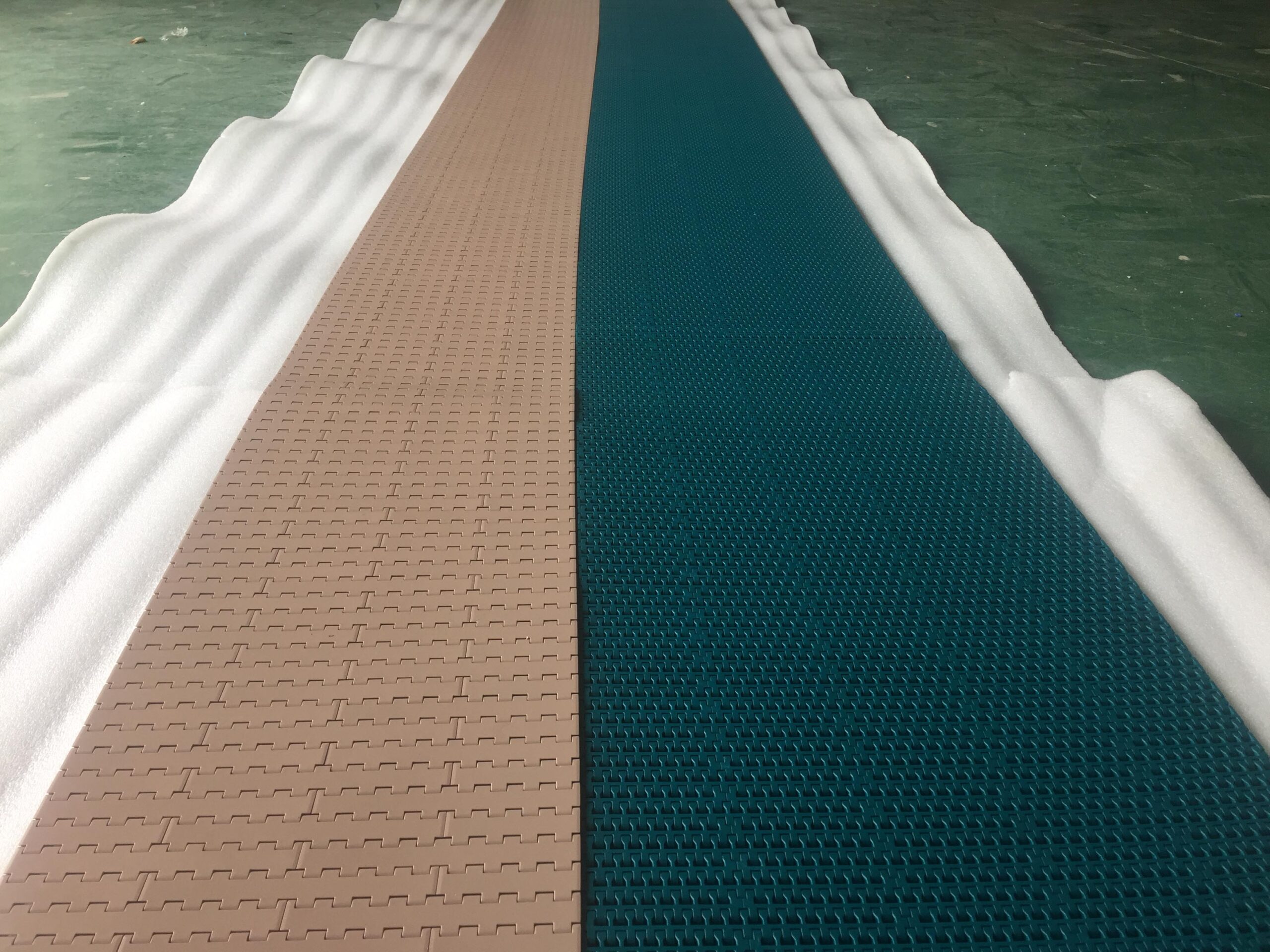

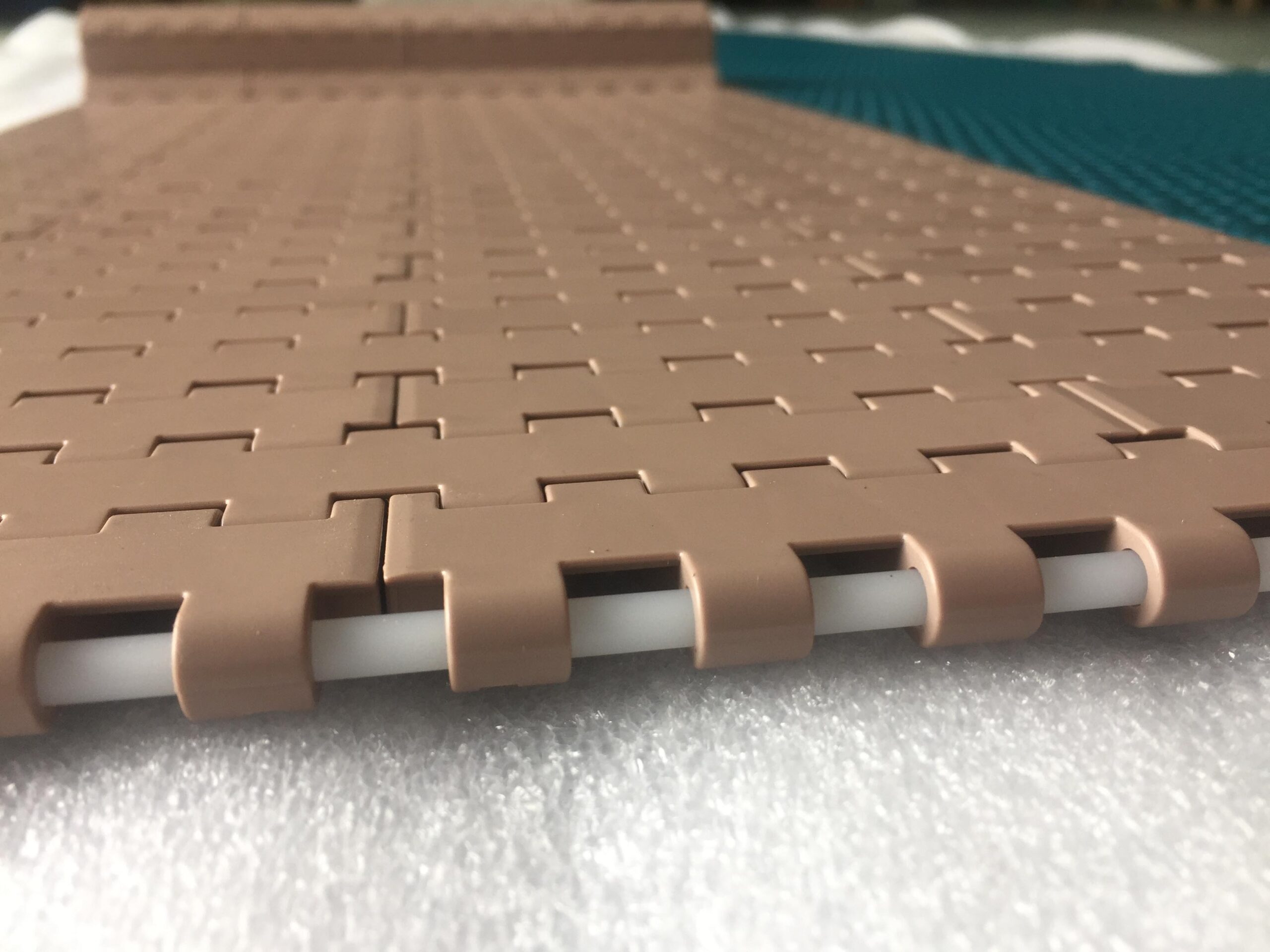

5935 flat top plastic modular conveyor belt

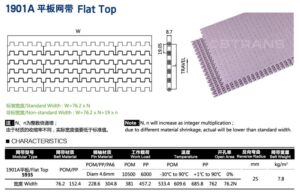

Parameters
| Modular Type | 5935 | |
| Standard Width(mm) | 76.2 152.4 228.6 304.8 381 457.2 533.4 609.6 685.8 762 76.2N | (N,n will increase as integer multiplication;
due to different material shrinkage,Actual will be lower than standard width) |
| Non-standard Width(mm) | 76.2*N+19*n | |
| Pitch | 19.05 | |
| Belt Material | POM/PP | |
| Pin Material | POM/PP/PA6 | |
| Pin Diameter | 4.6mm | |
| Work Load | POM:10500 PP:6000 | |
| Temperature | POM:-30°~ 90° PP:+1°~90° | |
| Open Area | 0% | |
| Reverse Radius(mm) | 25 | |
| Belt Weight(kg/㎡) | 7.8 | |

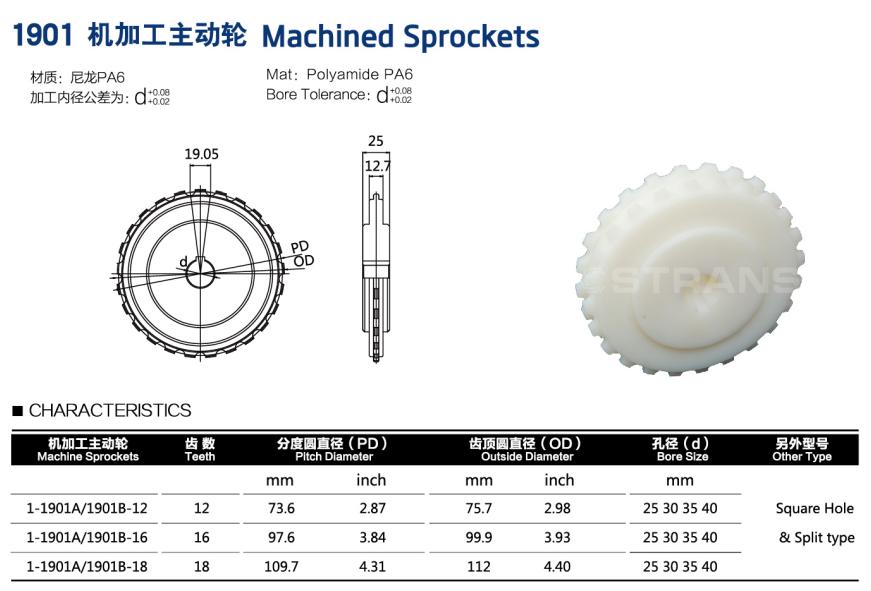

5935 Machined Sprockets
| Model Number | Teeth | Pitch Diametet(mm) | Outside Diameter | Bore Size | Other Type | ||
| mm | Inch | mm | Inch | mm |
Square Hole & Split Type |
||
| 1-1901A/1901B-12 | 12 | 73.6 | 2.87 | 75.7 | 2.98 | 25 30 35 40 | |
| 1-1901A/1901B-16 | 16 | 97.6 | 3.84 | 99.9 | 3.93 | 25 30 35 40 | |
| 1-1901A/1901B-18 | 18 | 109.7 | 4.31 | 112 | 4.40 | 25 30 35 40 | |
Application Industries
Chickens, pigs, ducks sheep,slaughtered , cutting and processing, fruit grading,puffed food production line, packing lines, fish processing production line, frozen food production line, battery manufacturing, beverage manufacturing, canning industry, chemical industry agro industry, electronics, the cosmetics industry rubber and plastic manufacturing industry, the general transport operations.
Advantage
1. Precision manufacturing
2. High flatness
3. Low friction coefficient and high wear resistance
4. High work load
5. Safe, fast and easy to maintain
Physical and chemical properties
Acid and alkali resistance (PP):
SNB flat top modular plastic conveyor belt using pp material in acidic environment and alkaline environment has better transport capacity;
Antistatic: Antistatic products whose resistance value is less than 10E11Ω are antistatic products. Good antistatic products whose resistance value is 10E6 to 10E9Ω are conductive and can release static electricity due to their low resistance value. Products with resistance greater than 10E12Ω are insulated products, which are easy to generate static electricity and cannot be released by themselves.
Wear resistance:
Wear resistance refers to the ability of a material to resist mechanical wear. Attrition per unit area per unit time at a certain grinding speed under a certain load;
Corrosion resistance:
The ability of a metal material to resist the corrosive action of the surrounding media is called corrosion resistance.
Features and characteristics
1. Simple structure
2. Easy cleaning
3. Easy replacement
4. Widely application
