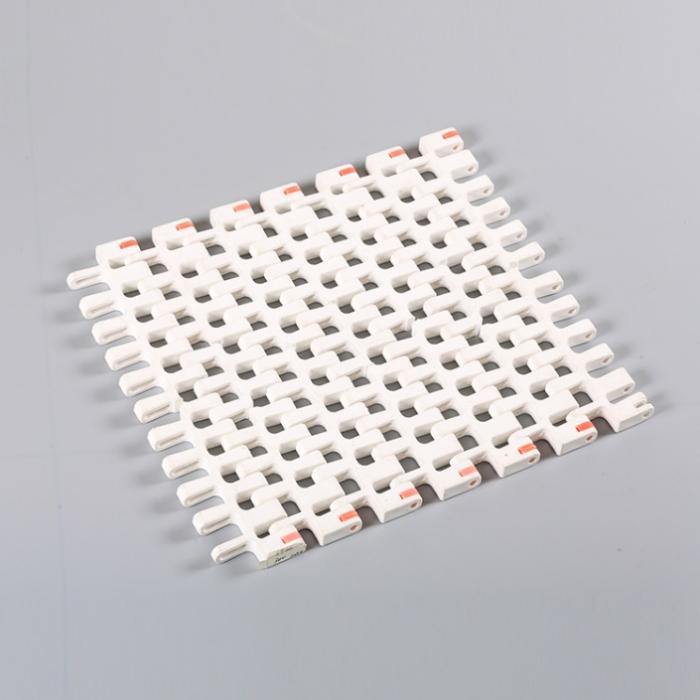

300 Radius Flush Grid Modular Plastic Conveyor Belt
Short Description

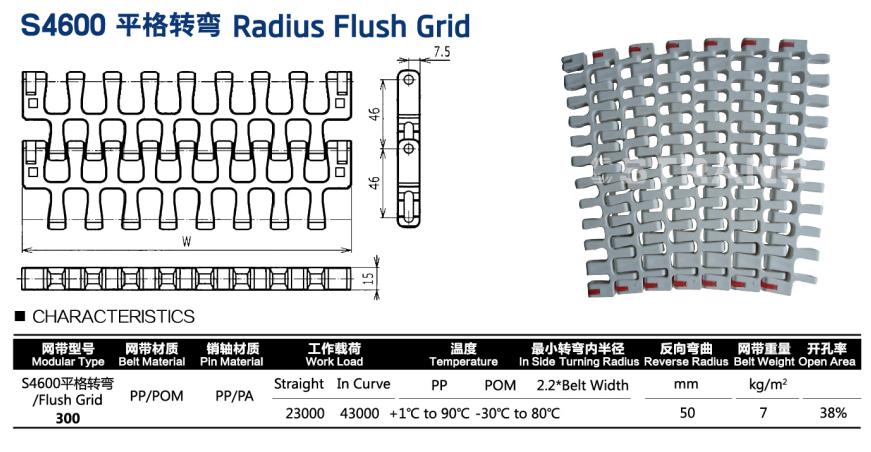

Parameter
| Modular Type | 300 Radius Flush Grid | |
| Standard Width(mm) | 103.35 124.15 198.6 190.25 293.6 or customization | Note:n will increase as integer ultiplication:due to different material shrinkage,actual will be lower than standard width |
| Non-standard Width | 293.6+24.83*n | |
| Pitch(mm) | 46 | |
| Belt Material | PP/POM | |
| Pin Material | PP/PA | |
| Work Load | Straight:23000 In Curve:4300 | |
| Temperature | PP:+1C° to 90C° POM:-30C° to 80C° | |
| In Side Turing Radius | 2.2*Belt Width | |
| Reverse Radius(mm) | 50 | |
| Open Area | 38% | |
| Belt Weight(kg/㎡) | 7 |

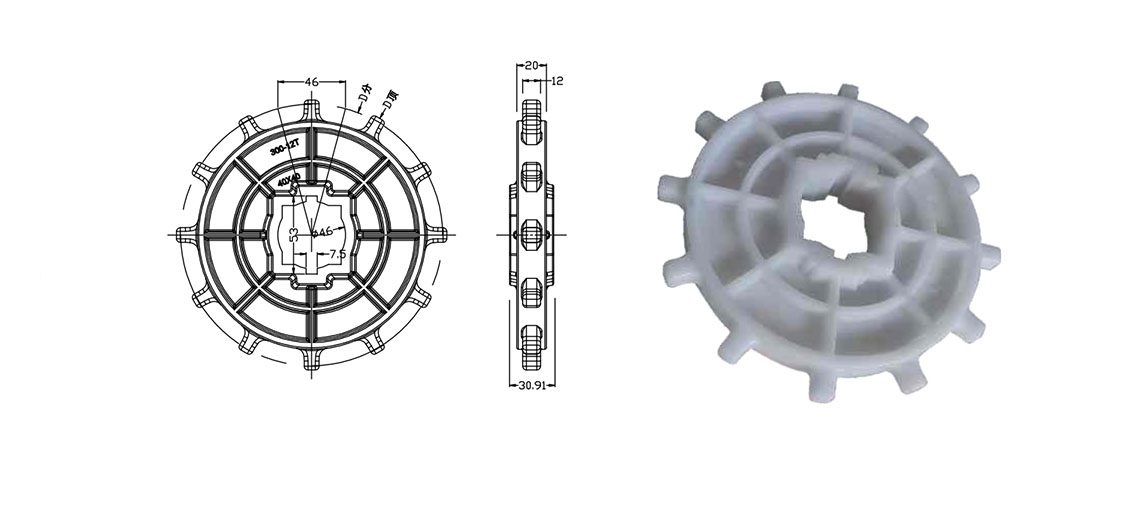

Moulded Sprockets
| I njection Moulded Sprockets | Teeth | B ore Size(mm) | P itch Diameter | O utside Diameter | molding method | |
| C ircular | S quare | m m | m m | |||
| 3 00-12T | 1 2 | 4 6 | 4 0 | 1 77.7 | 1 83.4 | Injection |
| 3 00-8T | 8 | 2 5-40 | 1 20 | 1 25 | M achined | |
| 3 00-10T | 1 0 | 2 5-50 | 1 49 | 1 54 | ||
| 3 00-13T | 1 3 | 2 5-60 | 1 92 | 1 97 | ||
| 3 00-16T | 1 6 | 3 0-70 | 2 35.8 | 2 41 | ||
| Special number of teeth can be customized, Axle diameter can be square holes/round holes , The material of injection sprockets can be POM/PP/PA, and the material of machin ed sprockets can be PA/PP |
Application
1. Automobile industry 2. Battery 3. Frozen food 4. Snack food 5. Aquatic industry 6. Tire industry 7. Chemical industry
Advantage
1. Meet health standards 2. Conveyor belt surface free of impurities 3. Not polluted by the penetration of the product oil 4. Strong and wear resistant 5. Turnable 6. Antistatic 7. Easy maintenance
Physical and chemical properties
Acid and alkali resistance (PP) : 900 flat top modular plastic conveyor belt using pp material in acidic environment and alkaline environment has better transport capacity; Antistatic: 900 flat top modular plastic conveyor belt resistance value is less than 10E11Ω are antistatic products. Good antistatic products its resistance value is 10E6 to 10E9Ω,it’s conductive and can release static electricity due to their low resistance value. Products with resistance greater than 10E12Ω are insulated products, which are easy to generate static electricity and cannot be released by themselves. Wear resistance: Wear resistance refers to the ability of a material to resist mechanical wear. Attrition per unit area per unit time at a certain grinding speed under a certain load;
Corrosion resistance: The ability of a metal material to resist the corrosive action of the surrounding media is called corrosion resistance.
