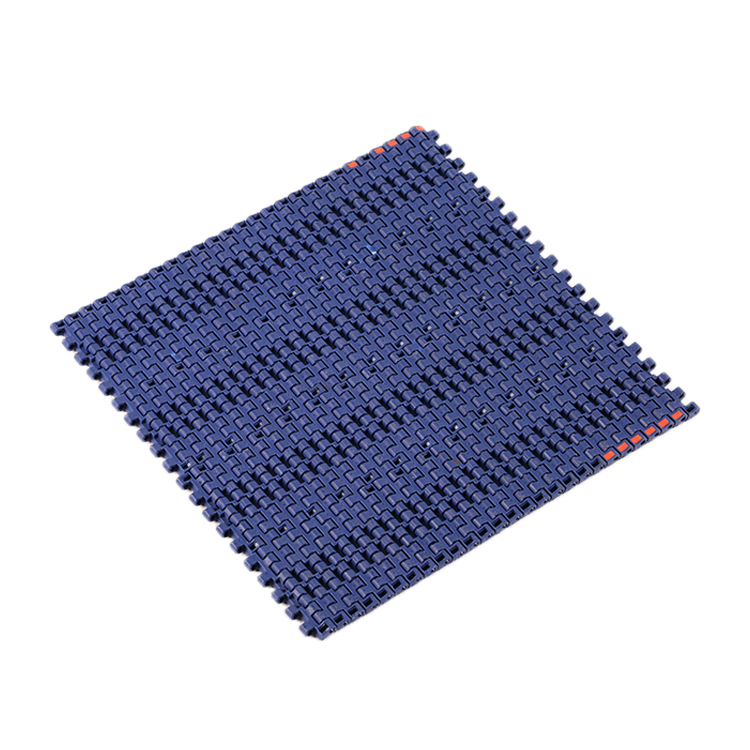

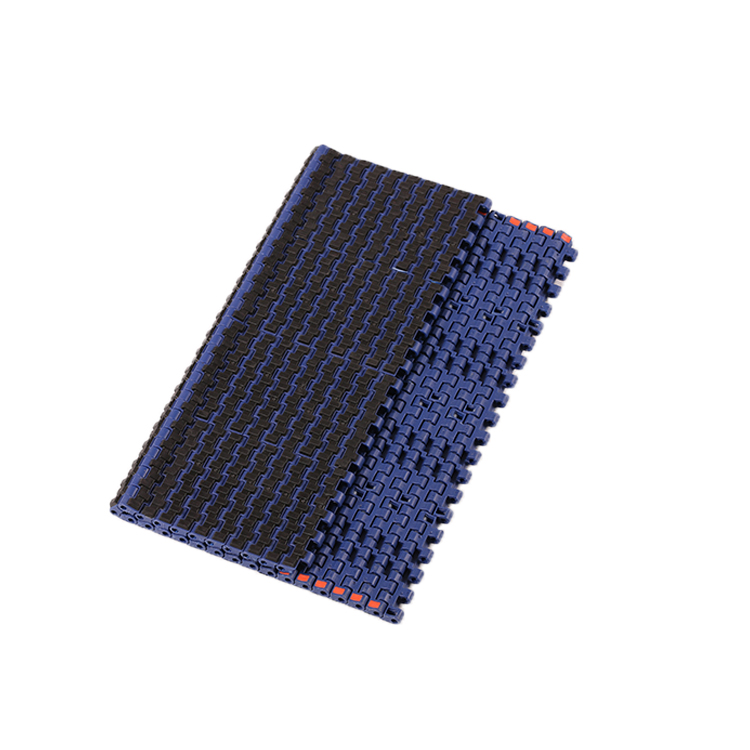

1505 Modular Plastic Conveyor Belt With Rubber

Short Description:

1505 modular plastic conveyor belt with rubber suitable for packaging or upslope and downslope transmission requirements.

Product Detail

Product Tags

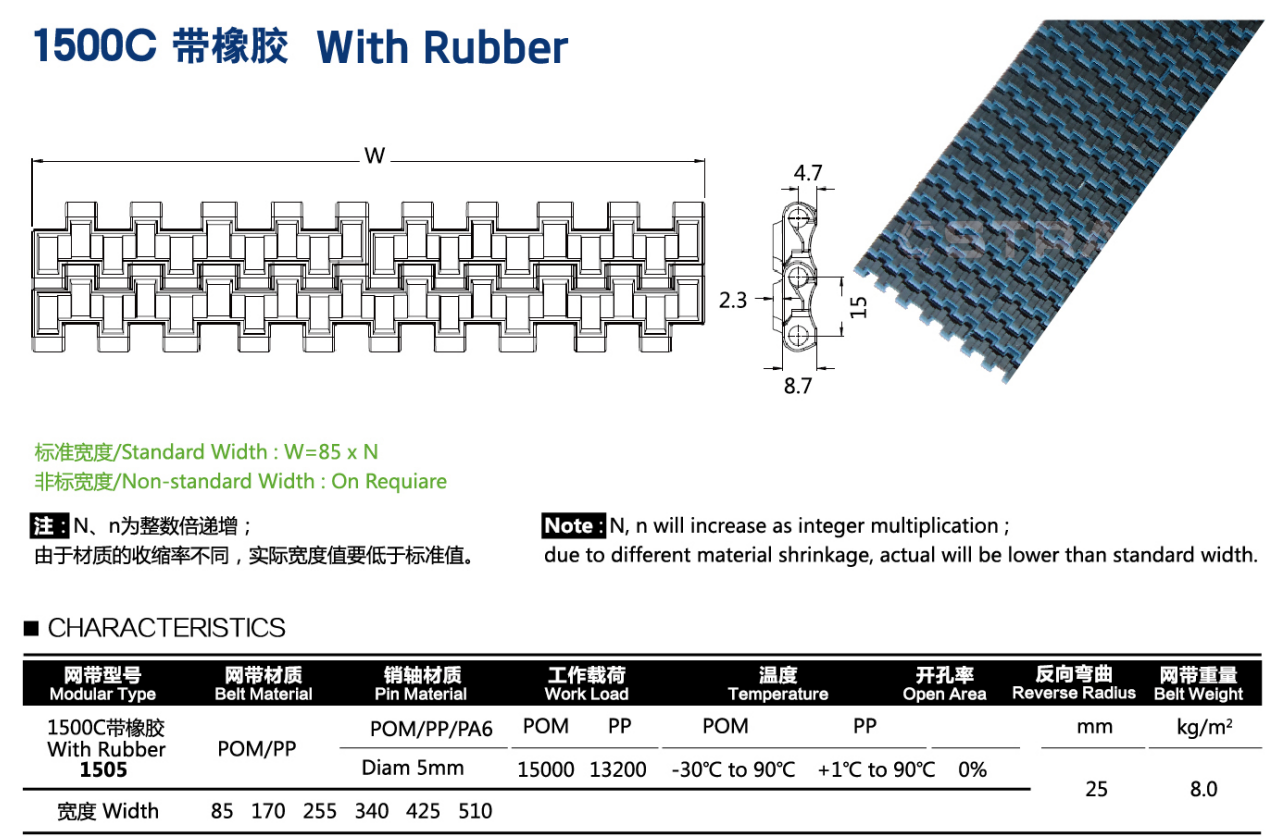

Parameter


Modular Type

1505 Flat Top

Standard Width(mm)

85 170 255 340 425 510 85N

(N·n will increase as integer multiplication;

due to different material shrinkage,Actual will be lower than standard width)

Non-standard Width

On Request

Pitch

15

Belt Material

POM/PP

Pin Material

POM/PP/PA6

Pin Diameter

5mm

Work Load

POM:15000 PP:13200

Temperature

POM:-30C°~ 90C° PP:+1C°~90C°

Open Area

0%

Reverse Radius(mm)

16

Belt Weight(kg/)

6.8

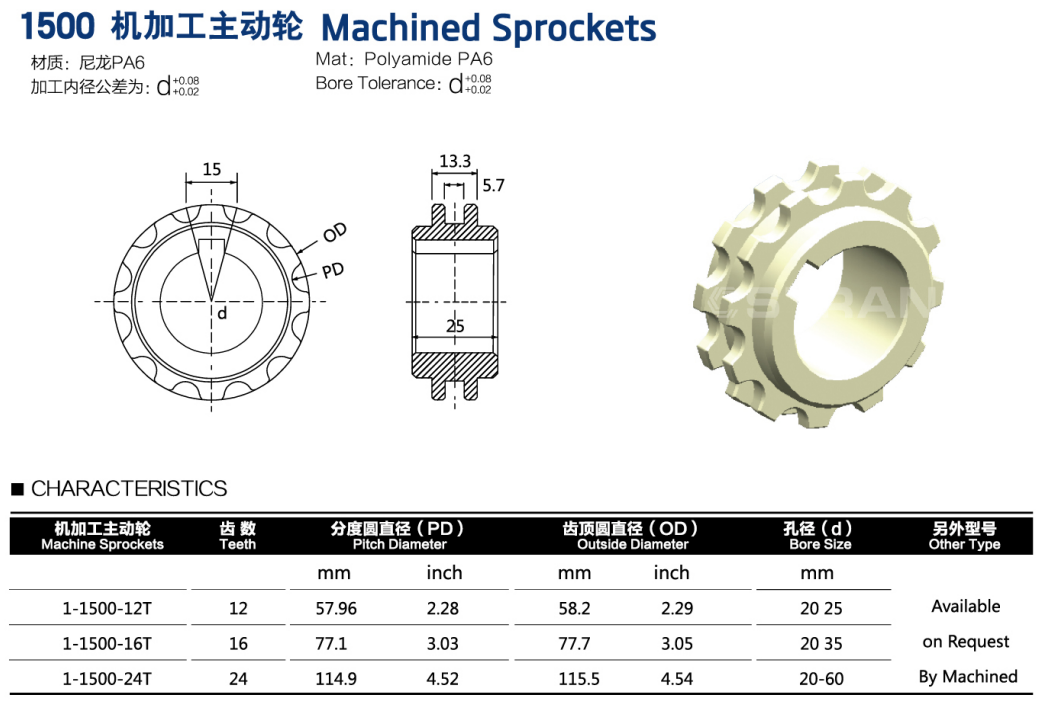

1505 Machined Sprockets

Machined Sprockets Teeth

Pitch Diametet(mm)

Outside Diameter

Bore Size

Other Type

mm Inch mm Inch mm

Available On request

By Machined

1-1500-12T

12

57.96

2.28

58.2 2.29 20 25
1-1500-16T

16

77.1

3.03

77.7 3.05 20 35
1-1500-24T

24

114.9

4.52

115.5 4.54 20 -60

Application

1.Standard 1505 flat top modular plastic conveyor belt suitable beverage industry

2.Antibacterial material suitable for food processing

3.Surface closure is suitable for the conveying of glass and other fragile products

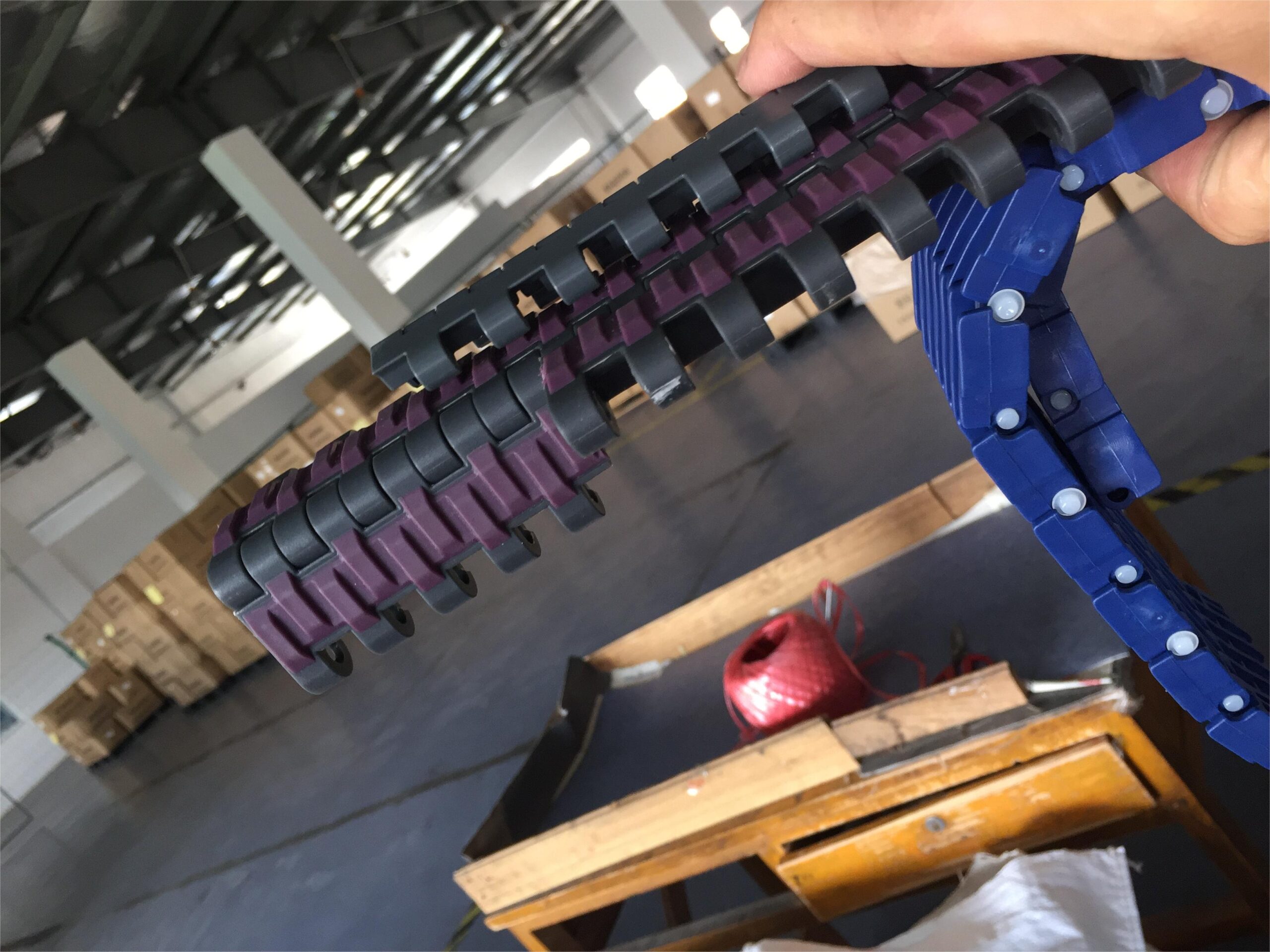

2017-07-26 133657

Advantages

2F1479DF273E9B6D43513D298ED48DFE

1.convenient to assembly and maintain

2.Smooth, closed upper surface

3.Stable operation

4.Low maintenance cost

5.Easy to clean

6.Safe design

7.High quality

8.Widely useage

9.Can withstand low friction coefficient,

10.High impact resistance, tensile strength and other instant impact

Physical and chemical properties

Polyoxymethylene (POM), also known as acetal,polyacetal, and polyformaldehyde,It is an engineering thermoplastic used in precision parts requiring high stiffness, low friction and excellent dimensional stability. As with many other synthetic polymers, it is produced by different chemical firms with slightly different formulas and sold variously by such names as Delrin, Kocetal, Ultraform, Celcon, Ramtal, Duracon, Kepital, Polypenco, Tenac and Hostaform.

POM is characterized by its high strength, hardness and rigidity to −40 °C. POM is intrinsically opaque white because of its high crystalline composition but can be produced in a variety of colors.POM has a density of 1.410–1.420 g/cm3.

Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is produced via chain-growth polymerization from the monomer propylene.

Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high chemical resistance.

Nylon 6(PA6) or polycaprolactam is a polymer, in particular semicrystalline polyamide. Unlike most other nylons, nylon 6 is not a condensation polymer, but instead is formed by ring-opening polymerization; this makes it a special case in the comparison between condensation and addition polymers.
